Polyurea & Elastomers Proportioning Machinery

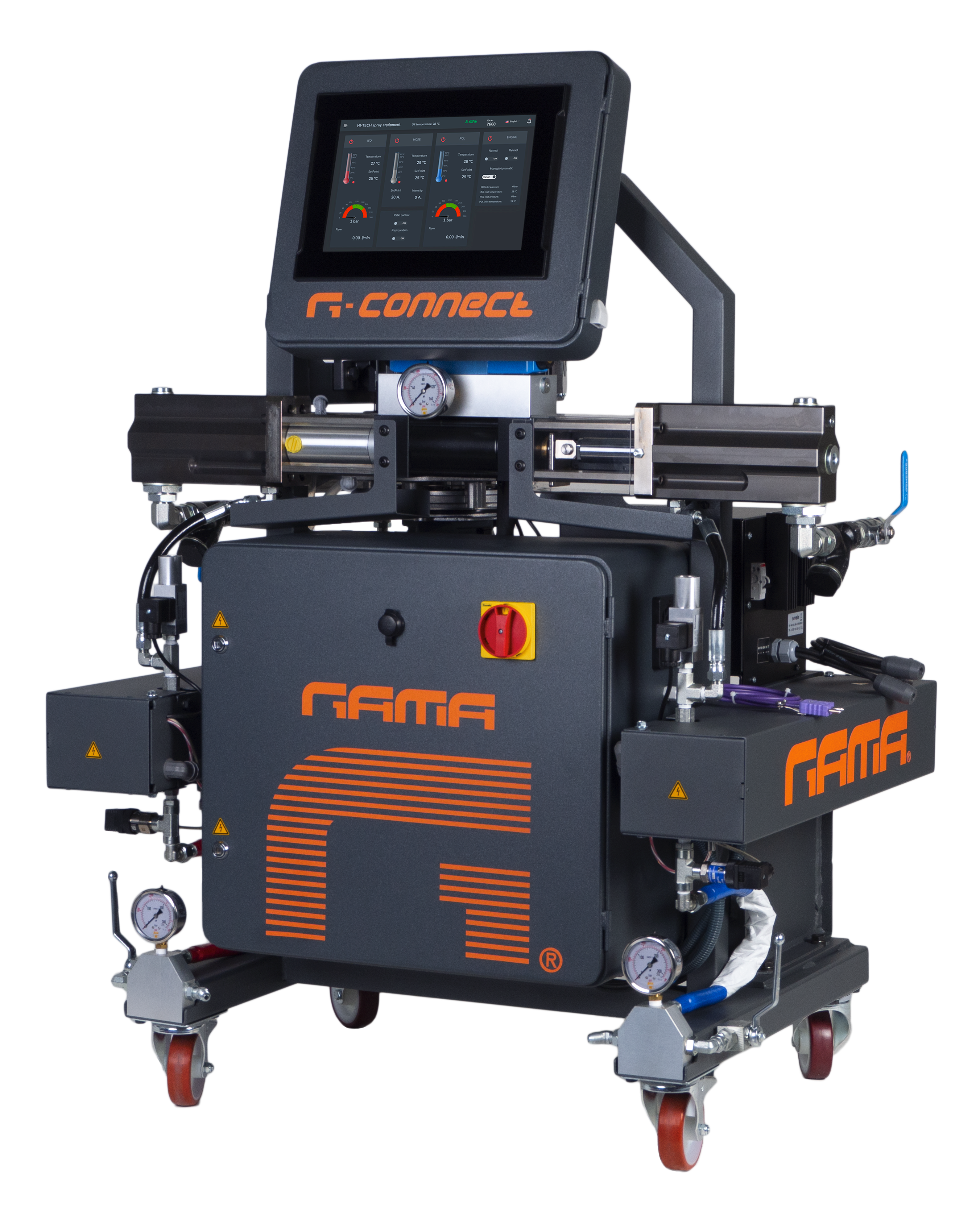

G-Connect | Hydraulic Proportioning Unit
| Technical specifications | |
|---|---|
| Max. Output (1.20 pumps): | 15 kg/min @ 110 bar 9 kg/min @ 160 bar 7 kg/min @ 240 bar |
| Electrical Consumption: | 3 PE 400 V 50/60 Hz 3 PE 230 V 60 Hz |
| Heating Power: | 12 kW |
| Hose Heating: | 4 kW |
| Motor Power: | 4 kW |
| Machine Consumption: | 38,4 A / 66,8 A |
| Max. Hoses Length: | 93 m |
| Weight: Oil capacity: |
242 kg (without oil) 28 l |
| Dimensions: | 1295 mm x 745 mm x 650 mm |
| Documentation: | Brochure Parts Identification Service Manual |
The G-Connect is the most powerful digital unit in the market. It has total connectivity plus the power and reliability of hydraulics in a single unit to analyse the foam and polyurea applications from any mobile device.
Features and characteristics
– Access all application data and generate your own reports from any device
– GPS location
– Smart touch screen easy to use
– Remote control with your mobile device
– Full control options:
- Accurate ratio and output control with flowmeters
- In & out temperatures and pressures control
- Oil temperature
- Alarms and troubleshooting guide
